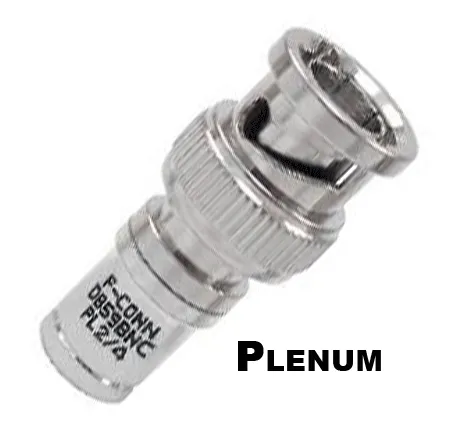

Belden DB59BNCPL2/4 Double Bubble BNC Connector
Please Note
ICM Corp's Double Bubble BNC connectors create two 360 degree compression connections, one exterior and one interior, providing a permanent double bubble connection.
Features
- Creates two 360 degree compression connections for better seal
- Provides superior protection against moisture
Specifications
- 75 Ohm Construction
- DC-1 GHz > 30 dB Return Loss < 1.07 VSWR
- DC-2 GHz > 30 dB Return Loss < 1.10 VSWR
- DC-3 GHz > 30 dB Return Loss < 1.16 VSWR
- Cable Pullout Force Exceeding 80 in/lbs
- Body Material : Brass
- Body Material (Plating) : Nickel
Coax Sizing
| Cable | Min ~ Max (inches) |
| Center | .0317 ~ .0339 in |
| Dielectric | .130 ~ .141 in |
| Outer Jacket | .190 ~ .220 in |
Mean Return Loss
Connector Cable Compatibility
| Bulk CCTV Store | Belden | Commscope | Genesis | General |
|
|
82259, 543945, 649948, 6439C8, 1506A, 89108, 643948, 649948 |
2020K-V, 2036K-V |
5351, 5355 | C3526, C8030, 495023, 495044 |
| Gepco - Isotek | Coleman | Liberty | West Penn | Tappan |
| VPM2000TS, IP201VT9, IP201V59 | 99979, 993236, 99969 | N/A |
25819, 25815, 25Q843 | D30009, D30124, H90224 |
